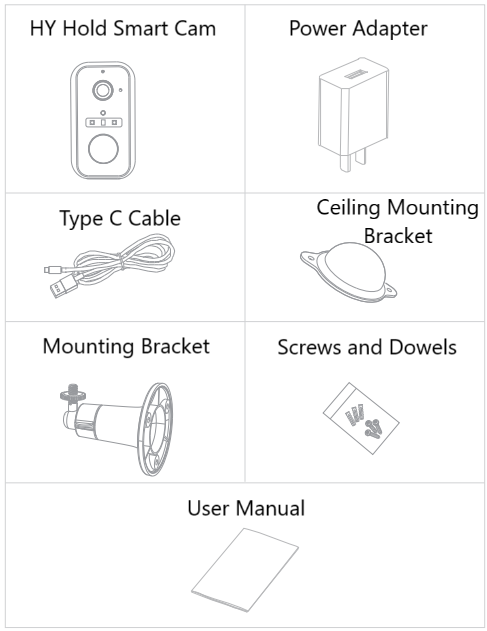

HY- CW3013-FB / What are the Box Contents and Technical Specifications of Hybrone Hold Wireless Battery Smart Cam ?

Modified on Fri, 31 May at 5:47 PM


Hybrone Hold Wireless Battery Smart Camera




Technical Specifics


Camera
Image Sensor
1/2.8''3 Megapixel CMOS
Effective Pixel
2304 (H) x 1296 (V)
Lowest Illumination
Colour: 0.1Lux@F2.0, S/B: 0.01Lux@F2.0
IR Distance
10M
WDR
DWDR
Day | Night
Auto (ICR) | Color | S&B
Lens | Field of View
3.0mm@F2.0 | 110°


Image & Sound
Compression
H.265
Bit Rate | Frame Rate
32Kbps~2Mbps | 1~25fps
Frame Rate
1~25fps
Dual Flow
Yes
Audio In | Audio Out
Built-in Microphone | Speaker


Network
Alarm Triggering

PIR Human Detection

Communication Protocol
HTTP, TCP/IP, DHCP, DNS
Wireless Connection
2.4G WIFI (IEEE802.11b/g/n)
Security
AES128


Battery & PIR
Capacity
5200mAh Lithium Battery
StandBy | Operating Current
200~800µA (Average) | 150~230mA (IR Off)
StandBy | Operation Time

6 Months | 1.5-2 Months (depends on usage and environment.)

PIR Distance | Angle

Max. 9m | 120°


General
Operating Temperature
−20 °C ~ 50 °C

Protection Class

IP6
Power Supply | Consumption
DC 5V/1A | Max. 2W
Storage
SD Card (Max.128G) | Cloud Recording*
Dimensions | Weight
57 x 63 x 100mm | 235g
